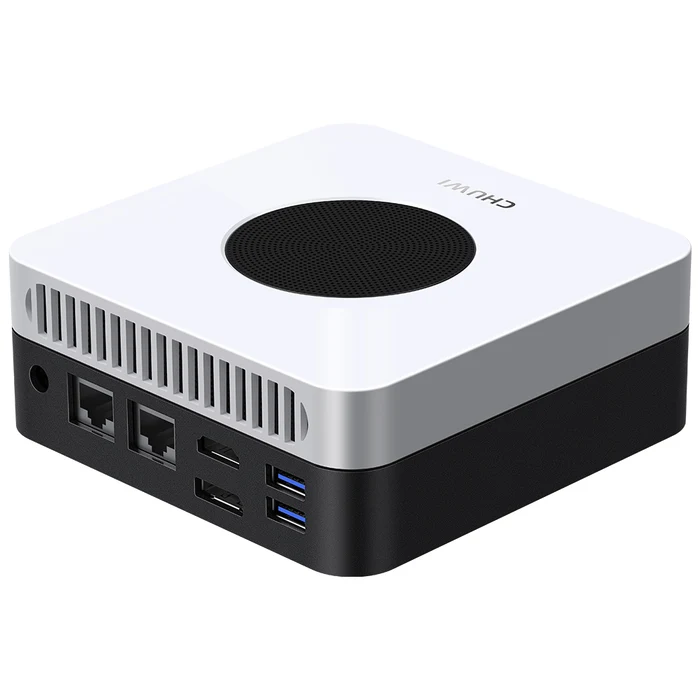

CHUWI LarkBox X 100U

Swipe to compare ↔

CHUWI

Mini PC specifications. Click a column to highlight it. Unknown values are not treated as absent. Differences show confirmed comparable values only.
Specification	CHUWI LarkBox X 100U


Snapshot price	—Price unverified
Package	—
Included RAM	—
Included RAM speed	—
Included storage	—
Included OS	—
At capture	—
Listed OS	Windows 11 Pro


CPU	Intel Core 3 100U
Graphics	Intel Graphics (64 EUs, up to 1.25 GHz)
Listed GPU details	—


RAM options	16 GB
Type	DDR4
Listed RAM speed	3200 MT/s
Format	SO-DIMM
Upgradeable	Yes
Slots	2 slots
Maximum RAM	up to 64GB


Capacity options	512 GB
Format	M.2 2280
Interface	PCIe 4.0 ×4 / PCIe 3.0 ×4 / SATA
Total slots	2 x M.2 2280 SSD slots
Maximum storage	2 x M.2 2280 SSD slots: 1 x PCIe 4.0 x4 up to 1TB and 1 x PCIe 3.0 x4/SATA up to 1TB. Installed SSD interface not separately specified.


USB-A	4
USB-C	1
USB 2.0	—
USB 5 Gbps	—
USB 10 Gbps	5
USB 20 Gbps	—
USB4	—
USB4 speed	—
Thunderbolt version	—
Thunderbolt speed	—
Thunderbolt ports	—
USB-C power in	—
USB-C power out	—


Ethernet ports	2
RJ45	2
SFP / SFP+ / SFP28	—
1 GbE ports	2
2.5 GbE ports	—
5 GbE ports	—
10 GbE ports	—
25 GbE ports	—
Controller	—


HDMI	1
HDMI version	2.1 TMDS
DisplayPort	1
DP version	1.2
USB-C video	1
Display modes	USB video: 4K@144Hz; HDMI: 4K@60Hz; DP: 4K@144Hz


Wi-Fi	Wi-Fi 6 / 802.11ax
Wi-Fi module	—
Bluetooth	5.2


OCuLink	—
Audio	1
Card reader	—


VolumeL	≈ 0.79
Dimension 1mm	127
Dimension 2mm	127
Dimension 3mm	49
Weightkg	0.4


Idle noise	—
Load noise	—
Idle wall power	—
Load wall power	—

“—” means unverified, not absent. Prices are captured store prices, not live quotes. Prices and availability depend on the sales market; product specifications do not. Choose a configuration to compare included RAM, storage and OS.

Dimensions follow source order. Volume is calculated. Specifications do not establish real-world performance.
