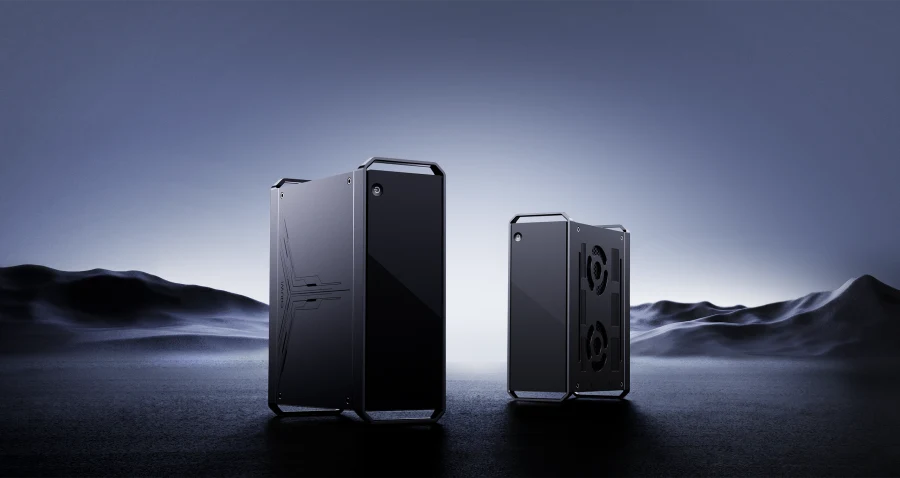

CHUWI CoreBox

Swipe to compare ↔

CHUWI

Mini PC specifications. Click a column to highlight it. Unknown values are not treated as absent. Differences show confirmed comparable values only.
Specification	CHUWI CoreBox


Snapshot price	—Price unverified
Package	—
Included RAM	—
Included RAM speed	—
Included storage	—
Included OS	—
At capture	—
Listed OS	Windows 11 Pro


CPU	Intel Core i7-13620H
Graphics	Intel UHD Graphics for 13th Gen Intel Processors
Listed GPU details	—


RAM options	16 GB
Type	LPDDR5
Listed RAM speed	4800 MHz
Format	Soldered
Upgradeable	No
Slots	—
Maximum RAM	—


Capacity options	512 GB
Format	M.2 2280
Interface	PCIe 3.0
Total slots	1× M.2 2280 PCIe 3.0 SSD slot
Maximum storage	1× M.2 2280 PCIe 3.0 SSD slot, expandable up to 1TB


USB-A	4
USB-C	—
USB 2.0	—
USB 5 Gbps	4
USB 10 Gbps	—
USB 20 Gbps	—
USB4	—
USB4 speed	—
Thunderbolt version	—
Thunderbolt speed	—
Thunderbolt ports	—
USB-C power in	—
USB-C power out	—


Ethernet ports	1
RJ45	1
SFP / SFP+ / SFP28	—
1 GbE ports	1
2.5 GbE ports	—
5 GbE ports	—
10 GbE ports	—
25 GbE ports	—
Controller	—


HDMI	1
HDMI version	2.0
DisplayPort	1
DP version	1.4
USB-C video	—
Display modes	HDMI: 4K@60Hz; DP: 4K@60Hz


Wi-Fi	Wi-Fi 6
Wi-Fi module	Intel AX101
Bluetooth	5.2


OCuLink	—
Audio	2
Card reader	—


VolumeL	≈ 2.00
Dimension 1mm	173
Dimension 2mm	158
Dimension 3mm	73
Weightkg	0.865


Idle noise	—
Load noise	—
Idle wall power	—
Load wall power	—

“—” means unverified, not absent. Prices are captured store prices, not live quotes. Prices and availability depend on the sales market; product specifications do not. Choose a configuration to compare included RAM, storage and OS.

Dimensions follow source order. Volume is calculated. Specifications do not establish real-world performance.
