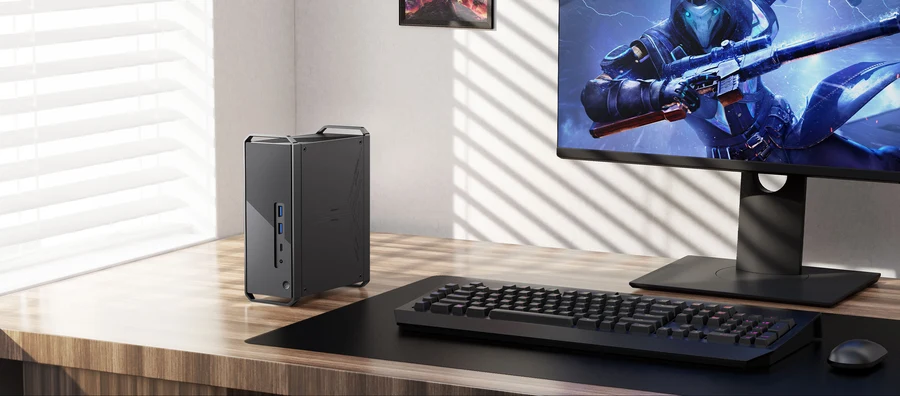

CHUWI CoreBox

Swipe to compare ↔

CHUWI

Mini PC specifications. Click a column to highlight it. Unknown values are not treated as absent. Differences show confirmed comparable values only.
Specification	CHUWI CoreBox


Snapshot price	—Price unverified
Package	—
Included RAM	—
Included RAM speed	—
Included storage	—
Included OS	—
At capture	—
Listed OS	Windows 11 Pro


CPU	Intel Core i5-12450H
Graphics	Intel UHD Graphics for 12th Gen Intel Processors
Listed GPU details	—


RAM options	16 GB
Type	—
Listed RAM speed	—
Format	—
Upgradeable	—
Slots	—
Maximum RAM	—


Capacity options	512 GB
Format	M.2 2280
Interface	PCIe 3.0 / PCIe / PCIe 4.0 ×4 / PCIe 3.0 ×4 / PCIe 3.0 ×2
Total slots	4× M.2 2280 PCIe SSD slots
Maximum storage	—


USB-A	8
USB-C	1
USB 2.0	4
USB 5 Gbps	4
USB 10 Gbps	—
USB 20 Gbps	—
USB4	1
USB4 speed	40 Gbps
Thunderbolt version	—
Thunderbolt speed	—
Thunderbolt ports	—
USB-C power in	—
USB-C power out	—


Ethernet ports	1
RJ45	1
SFP / SFP+ / SFP28	—
1 GbE ports	—
2.5 GbE ports	1
5 GbE ports	—
10 GbE ports	—
25 GbE ports	—
Controller	—


HDMI	2
HDMI version	1.4
DisplayPort	2
DP version	1.4
USB-C video	1
Display modes	USB video: 4K@144Hz; HDMI: 4K@60Hz; DP: 4K@144Hz


Wi-Fi	Wi-Fi 6
Wi-Fi module	—
Bluetooth	5.2


OCuLink	—
Audio	3
Card reader	—


VolumeL	≈ 2.00
Dimension 1mm	173
Dimension 2mm	158
Dimension 3mm	73
Weightkg	0.865


Idle noise	—
Load noise	—
Idle wall power	—
Load wall power	—

“—” means unverified, not absent. Prices are captured store prices, not live quotes. Prices and availability depend on the sales market; product specifications do not. Choose a configuration to compare included RAM, storage and OS.

Dimensions follow source order. Volume is calculated. Specifications do not establish real-world performance.
