CHUWI AuBox X 226V

Swipe to compare ↔

CHUWI

Mini PC specifications. Click a column to highlight it. Unknown values are not treated as absent. Differences show confirmed comparable values only.
Specification	CHUWI AuBox X 226V


Snapshot price	—Price unverified
Package	—
Included RAM	—
Included RAM speed	—
Included storage	—
Included OS	—
At capture	—
Listed OS	Windows 11 Pro


CPU	Intel Core Ultra 5 226V
Graphics	Intel Arc 130V
Listed GPU details	—


RAM options	16 GB
Type	LPDDR5X
Listed RAM speed	8533 MT/s
Format	On-package
Upgradeable	No
Slots	—
Maximum RAM	—


Capacity options	512 GB
Format	M.2 2280
Interface	PCIe 3.0 / PCIe 5.0 ×4 / PCIe 4.0 ×2
Total slots	2× M.2 2280 SSD slots
Maximum storage	—


USB-A	6
USB-C	2
USB 2.0	1
USB 5 Gbps	4
USB 10 Gbps	1
USB 20 Gbps	—
USB4	1
USB4 speed	40 Gbps
Thunderbolt version	—
Thunderbolt speed	—
Thunderbolt ports	—
USB-C power in	—
USB-C power out	—


Ethernet ports	1
RJ45	1
SFP / SFP+ / SFP28	—
1 GbE ports	—
2.5 GbE ports	1
5 GbE ports	—
10 GbE ports	—
25 GbE ports	—
Controller	—


HDMI	2
HDMI version	2.1 FRL; 2.1 TMDS
DisplayPort	1
DP version	1.4
USB-C video	1
Display modes	USB video: 4K@144Hz; HDMI: 8K@60Hz; HDMI: 4K@120Hz; HDMI: 4K@60Hz; DP: 4K@120Hz


Wi-Fi	Wi-Fi 6E
Wi-Fi module	—
Bluetooth	5.4


OCuLink	—
Audio	1
Card reader	—


VolumeL	≈ 0.67

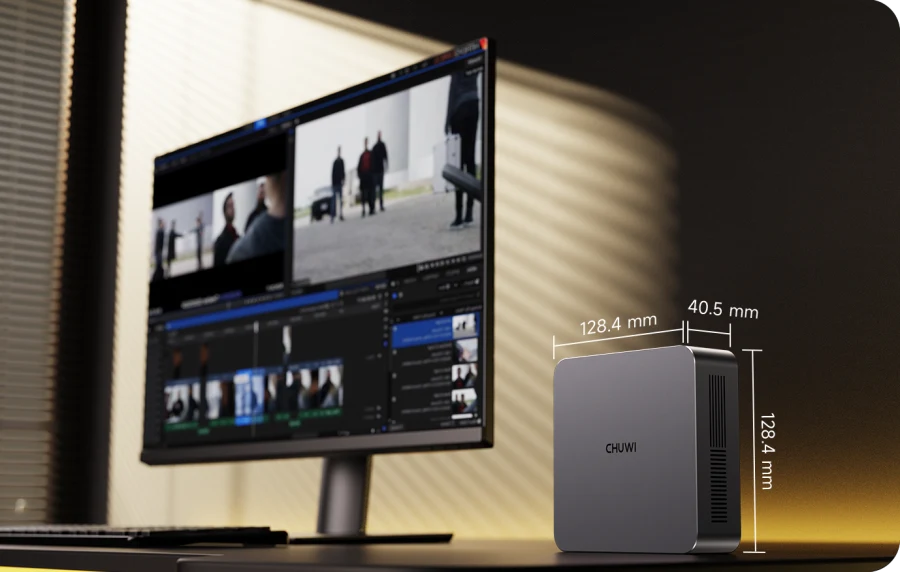

Dimension 1mm	128.4
Dimension 2mm	128.4
Dimension 3mm	40.5
Weightkg	0.58


Idle noise	—
Load noise	—
Idle wall power	—
Load wall power	—

“—” means unverified, not absent. Prices are captured store prices, not live quotes. Prices and availability depend on the sales market; product specifications do not. Choose a configuration to compare included RAM, storage and OS.

Dimensions follow source order. Volume is calculated. Specifications do not establish real-world performance.
